NTC Temperature
Sensor Harness
Custom-Built for Your System
We manufacture and customize single-point and multi-point NTC temperature sensor harnesses for BMS, lithium battery packs, energy storage systems, EV batteries, busbars, inverters and industrial equipment. Resistance value, B value, probe type, cable length, connector, terminal and harness layout -- all configurable to your specification.
- Fully customizable harness structure -- single-point to 12-point and beyond, matched to your BMS interface
- IATF 16949 production system · AEC-Q200 reliability testing · UL / TUV / CE certified components
- Supply from drawing, sample, wiring diagram or connector part number -- prototype to mass production
HARNESS SPEC OVERVIEW REV.A
- TEMP RANGE -45°C TO +300°C
- RESISTANCE 10K / 50K / 100K / Custom
- B VALUE B3435 / B3950 / B3977
- SENSING POINTS 1 - 12+ Points
- CONNECTOR JST / Molex / TE / Custom
- DAILY CAPACITY 2,000,000+ PCS
Why Choose an NTC Temperature Sensor Harness
Integrated thermal sensing, simplified assembly, reliable signal output.

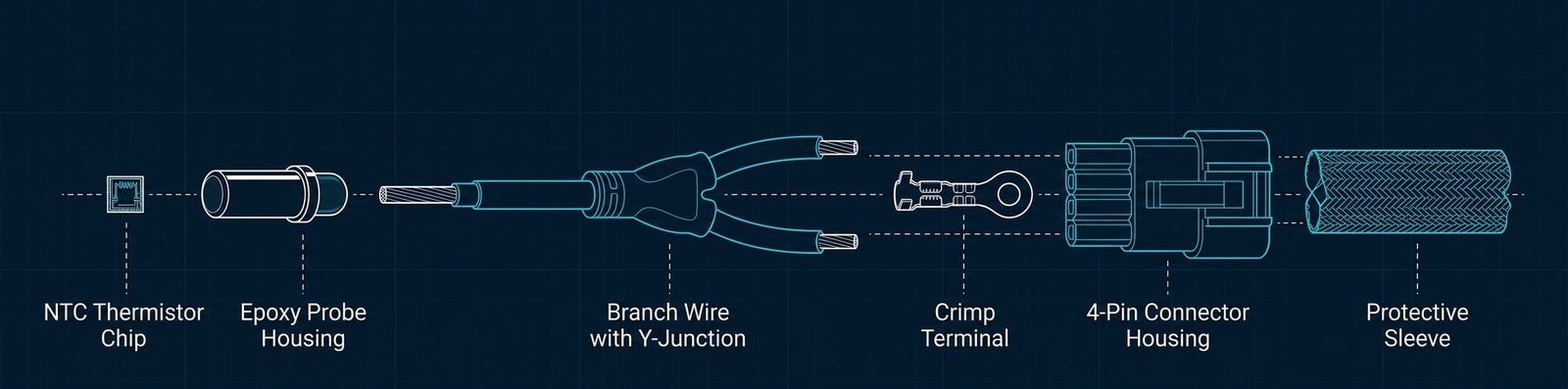

All-in-One Thermal Sensing Assembly
An NTC temperature sensor harness integrates the thermistor sensing element, probe housing, cable, branch wires, terminals and connector into a single ready-to-install component, eliminating loose wiring and reducing assembly complexity.
Designed for Multi-Point Temperature Monitoring
For battery packs, BMS, energy storage systems and EV batteries that require multiple sensing locations, a harness layout consolidates all temperature signals into a single connector interface, reducing wiring errors and simplifying BMS integration.
Matched to Equipment Structure and BMS Interface
Harness layout, branch lengths, cable routing and connector type are engineered to fit your equipment's physical structure and BMS interface, reducing field rework and ensuring consistent installation across production batches.
Broad Application Coverage
Multi-point NTC sensor harnesses are used in battery module temperature monitoring, busbar surface sensing, power module thermal management, inverter temperature detection and industrial equipment over-temperature protection.
Custom NTC Sensor Harness Solutions
Engineered to your application, installation space and BMS interface.
We work with engineers and procurement teams to develop NTC temperature sensor harnesses that match your specific application requirements -- from sensing point position and cable routing to connector interface and harness structure. Submit a drawing, sample, wiring diagram, connector part number or application description to start the customization process.
Single or Multi-Point Harness
Single-point for localized sensing or multi-point layouts (dual, 4-point, 6-point, 12-point and beyond) for battery modules and complex thermal management systems.
Resistance Value & B Value
NTC resistance value (10K, 50K, 100K or customized) and B value (B3435, B3950, B3977 or per system requirement) configurable to match your BMS calibration.
Accuracy Tolerance
Resistance tolerance ±1%, ±3%, ±5% or per project specification, ensuring temperature accuracy meets your BMS and thermal management requirements.
Probe Type & Housing Design
Epoxy coated, metal shell, flat type, ring terminal, surface mount, adhesive type, embedded type and bolt-on type -- selected based on installation method and environment.
Cable Material & Length
PVC, silicone, PTFE/Teflon, XLPE or custom cable material. Main cable length and branch lengths defined according to equipment layout and installation space.
Connector, Terminal & Harness Layout
JST, Molex, TE, AMP or customer-specified connectors. Crimp, ring, pin or housing terminals. Single-branch, multi-branch, parallel leads or custom wiring structure.
Custom Options
Configure every parameter to your specification.
NTC Resistance Value
10K, 50K, 100K or customized
B Value
B3435, B3950, B3977 or customized according to system requirements
Accuracy Tolerance
±1%, ±3%, ±5% or according to project requirements
Number of Sensing Points
Single-point, dual-point, 3-point, 4-point, 6-point or customized multi-point layout
Probe Type
Epoxy coated, metal shell, flat type, ring terminal, surface mount, adhesive type, embedded type, bolt-on type
Cable Material
PVC, silicone, PTFE/Teflon, XLPE or customized
Cable Length
Main cable length and branch length customized according to equipment layout
Connector
JST, Molex, TE, AMP or customer-specified connectors
Terminal
Crimp terminal, ring terminal, pin terminal, housing terminal or customized
Mounting Method
Adhesive bonding, surface contact, ring terminal fixing, screw mounting, embedded installation
Harness Layout
Single branch, multi-branch, parallel sensor leads, grouped sensing points or custom wiring structure
Technical Specifications
Standard parameters and customizable ranges.
| Parameter | Options / Specifications |
|---|---|
| Product Type | NTC temperature sensor harness / NTC sensor cable assembly |
| Sensor Element | NTC thermistor |
| Resistance Value | 10K, 50K, 100K or customized |
| B Value | B3435, B3950, B3977 or customized |
| Resistance Tolerance | ±1%, ±3%, ±5% or according to requirement |
| Sensing Points | Single-point or customized multi-point layout |
| Probe Type | Epoxy, metal shell, flat type, ring terminal, surface mount, adhesive type |
| Cable Material | PVC, silicone, PTFE/Teflon, XLPE or customized |
| Cable Length | Customized according to equipment layout |
| Branch Length | Customized |
| Connector | JST, Molex, TE, AMP or customer-specified connector |
| Terminal | Crimp terminal, ring terminal, pin terminal or customized |
| Mounting Method | Adhesive, surface contact, embedded, ring terminal, screw mount |
| Harness Layout | Single branch, multi-branch, parallel leads or custom wiring structure |
| Application | BMS, battery pack, ESS, EV battery, busbar, inverter, industrial equipment |
| Customization | Available according to drawing, sample, wiring diagram or specification |
Product Types
NTC harness configurations for every application.

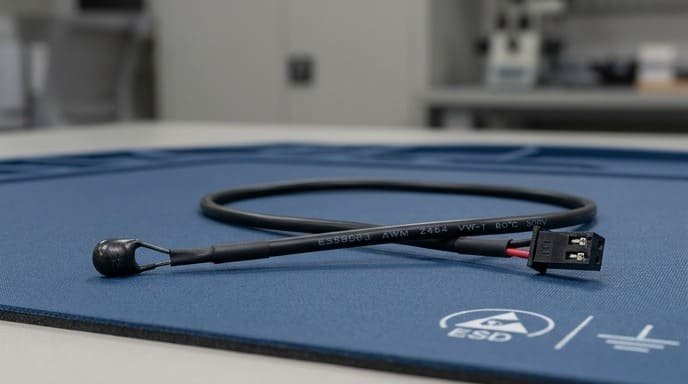

Single-Point NTC Temperature Sensor Harness
Designed for applications requiring temperature monitoring at a single critical location. Suitable for individual battery modules, busbars, power modules, motor housings and equipment components where one sensing point is sufficient. Available in epoxy, metal shell and flat probe types.

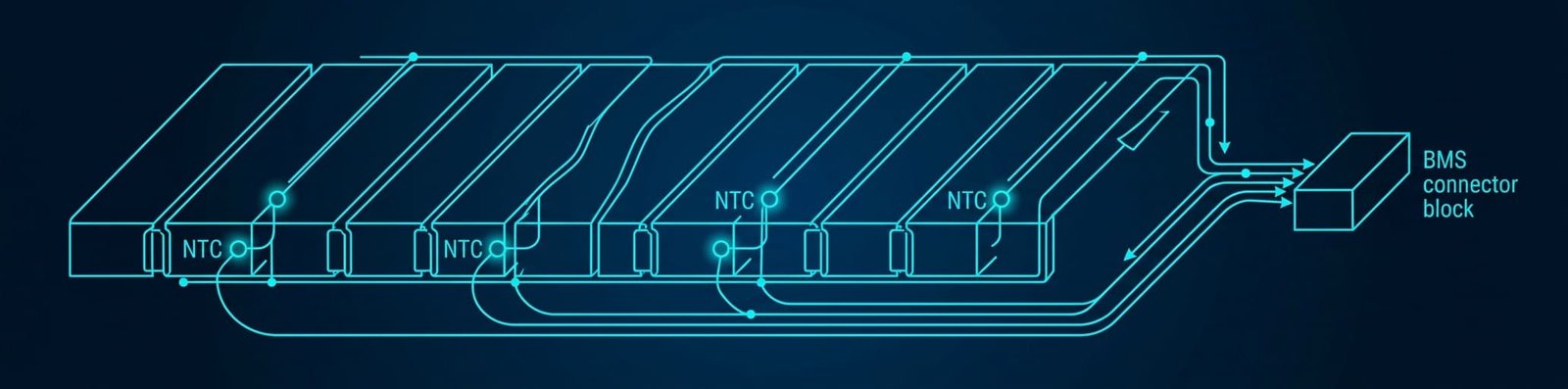

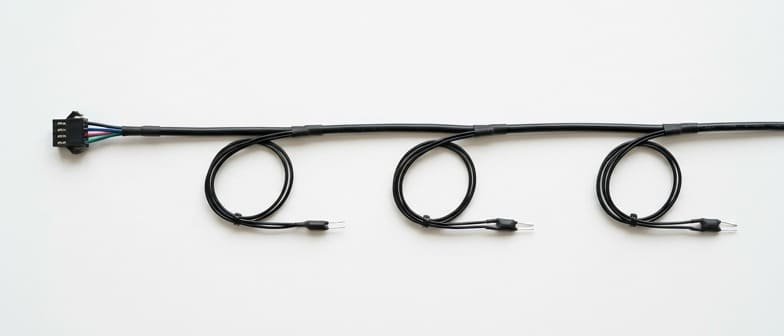

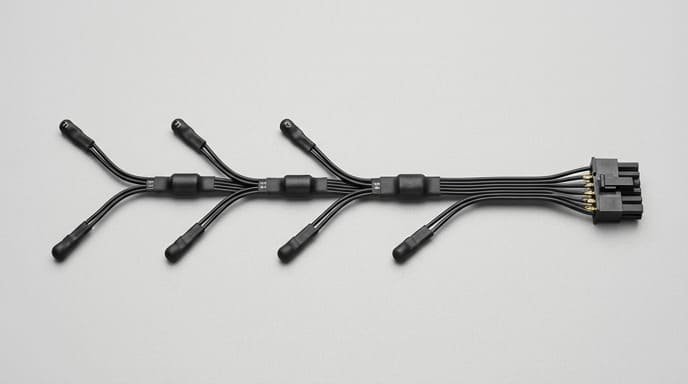

Multi-Point NTC Temperature Sensor Harness
Consolidates multiple NTC sensing elements into a single cable assembly with branching structure, terminating at one connector interface. Used in battery packs, BMS systems, energy storage modules and EV battery assemblies requiring temperature data from multiple locations simultaneously.

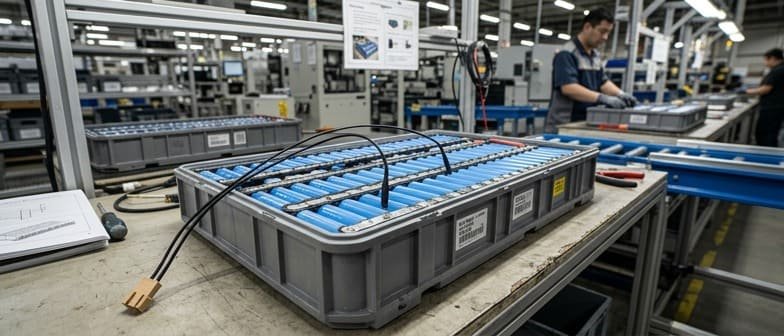

Battery Pack NTC Sensor Harness
Configured for lithium battery pack assembly with sensing points positioned across battery cells or modules. Branch lengths and harness layout are matched to the physical battery pack structure, simplifying installation and reducing wiring errors on the production line.

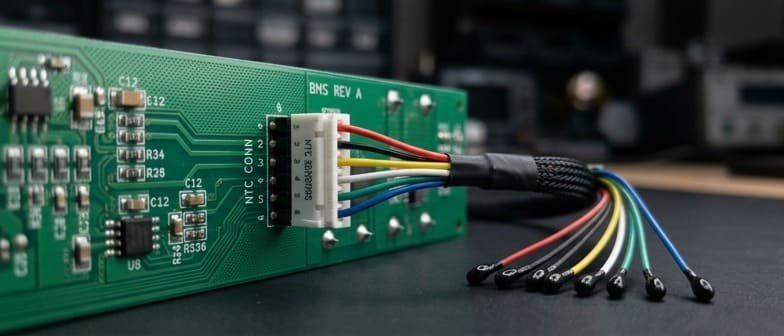

BMS NTC Temperature Sensing Harness
Designed to interface directly with BMS connectors and pin assignments. Connector type, pin count, wire color coding and branch lengths are configured to match the BMS board layout, enabling plug-and-play temperature signal collection without field modification.

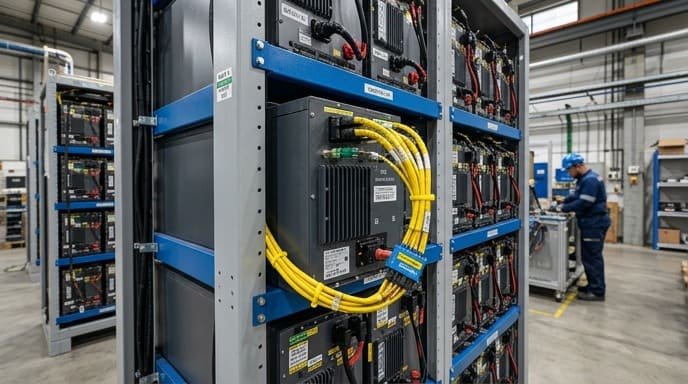

Energy Storage NTC Sensor Harness
Built for energy storage system modules with requirements for high voltage insulation, multi-point sensing and durable cable materials. Supports silicone and PTFE cable options for elevated temperature environments. Compatible with commercial and residential ESS platforms.

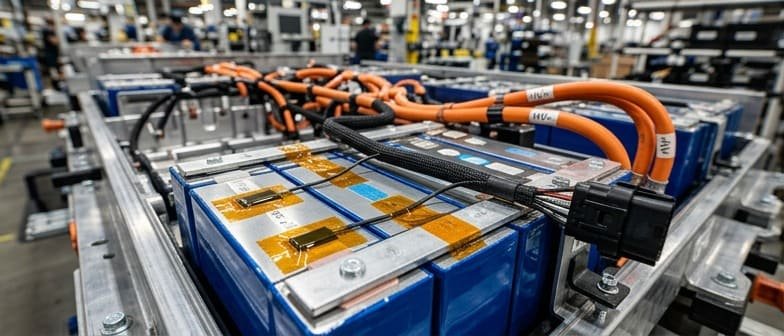

EV Battery Temperature Sensor Harness
Developed for EV battery pack thermal management with multi-point sensing across battery modules. Harness layout, cable routing and connector interface are defined according to EV platform requirements. Suitable for new energy vehicle battery assembly lines.

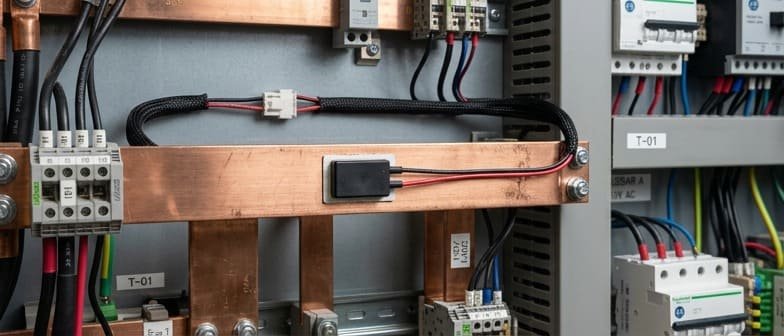

Busbar NTC Temperature Sensor Harness
Flat probe or ring terminal NTC sensors mounted on busbar surfaces to monitor contact temperature and detect hotspots. Suitable for power distribution busbars in battery packs, inverters and switchgear. Ring terminal versions allow direct screw-mount installation.

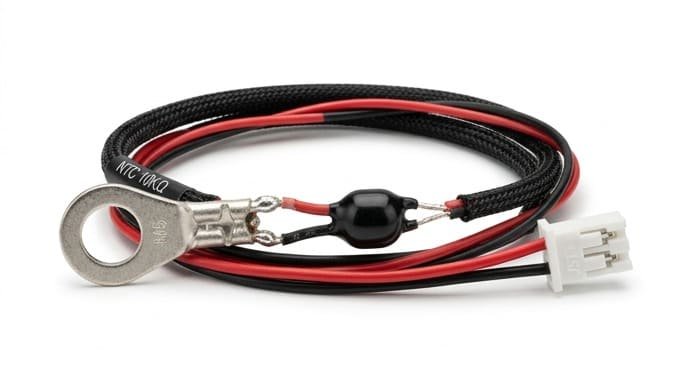

Ring Terminal NTC Sensor Harness
Features a ring terminal at the probe end for direct bolt-on installation to busbars, battery terminals, screw mounts or grounding points. Provides stable surface contact and is commonly used in battery packs, power electronics and industrial equipment.

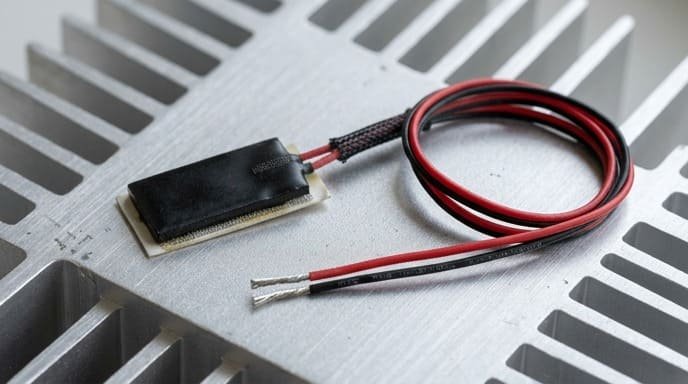

Flat Surface NTC Sensor Harness
Flat probe design for surface contact temperature measurement on battery cells, modules, heat sinks and flat components. Adhesive or clip mounting options available. Suitable for applications where minimal installation height and broad contact area are required.

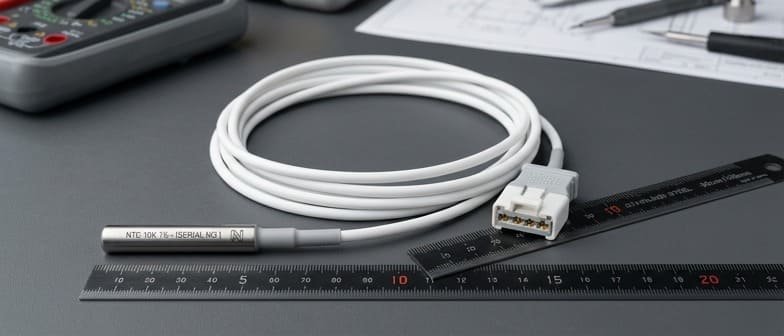

Custom NTC Sensor Cable Assembly
Fully customized NTC sensor cable assemblies produced from customer drawings, samples, wiring diagrams or application descriptions. Applicable to any combination of probe type, cable material, connector, terminal and harness layout not covered by standard configurations.
Application Scenarios
Deployed across energy, automotive and industrial systems.
BMS Temperature Signal Collection
NTC sensor harnesses deliver accurate resistance-based temperature signals to the BMS, enabling real-time thermal monitoring and state-of-health assessment across battery cells.

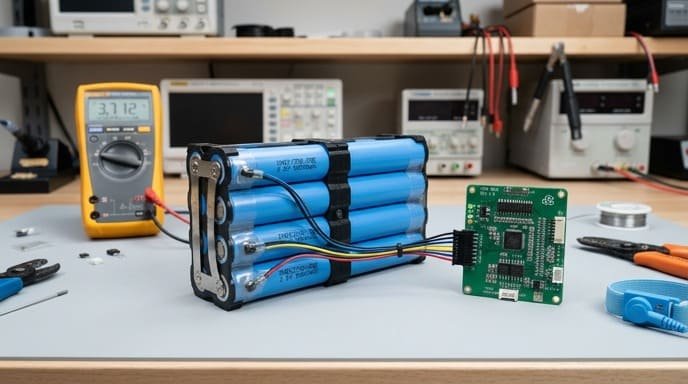

Lithium Battery Pack Temperature Monitoring
Multi-point harnesses monitor temperature distribution across battery cells and modules, supporting thermal balancing and early detection of abnormal heat buildup.

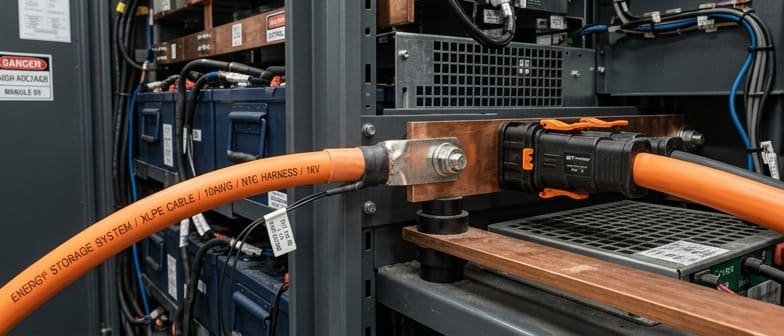

Energy Storage System Module Sensing
ESS modules use NTC sensor harnesses to monitor temperature across stacked cells and modules, supporting thermal management and protecting against overtemperature events.

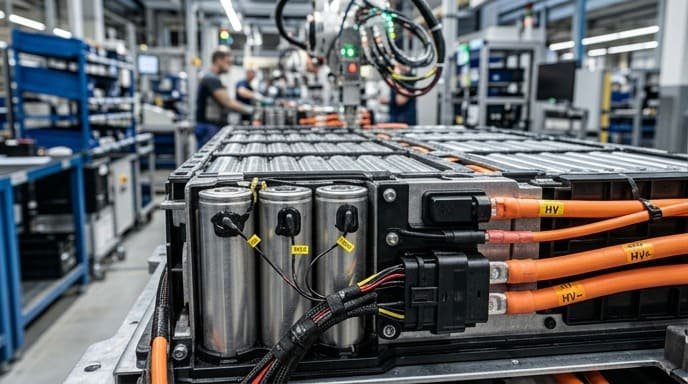

EV Battery Pack Temperature Detection
NTC harnesses integrated into EV battery assemblies provide continuous temperature data to the vehicle BMS, supporting thermal management and battery protection strategies.
Busbar Surface Temperature Monitoring
Flat probe or ring terminal NTC sensors mounted on busbars detect localized hotspots and surface temperature changes in power distribution and battery connection points.

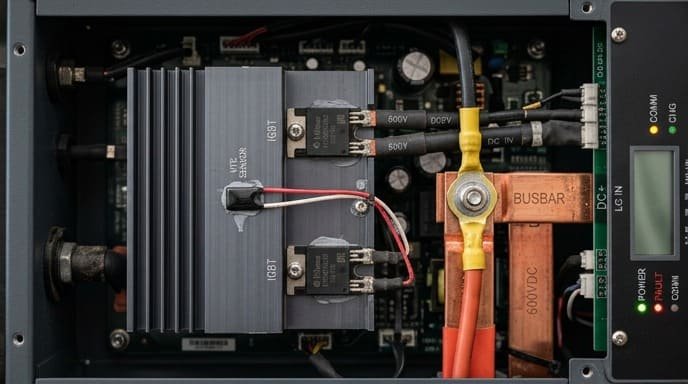

Inverter and Power Electronics Monitoring
NTC sensors positioned on inverter heat sinks, IGBT modules and power boards provide temperature feedback for thermal throttling and over-temperature protection.
Motor and Charger Temperature Sensing
Single or multi-point NTC harnesses monitor winding temperature in motors and thermal conditions inside EV chargers, supporting protection and efficiency optimization.
Industrial Equipment Over-Temperature Protection
NTC sensor harnesses integrated into industrial control cabinets, power supplies and machinery trigger alarms or shutdowns when temperature thresholds are exceeded.
Multi-Point Temperature Monitoring Inside Equipment
Custom harness layouts with multiple sensing points provide comprehensive temperature mapping inside complex equipment, reducing the need for separate sensor wiring.
Cable, Connector and Terminal Customization
Every harness element configurable to your interface and layout.
Cable material, cable length, branch lengths, terminals, connectors and harness structure are all defined according to your equipment layout, BMS interface requirements and installation environment. Production can be based on drawing, sample, wiring diagram, connector part number or BMS interface specification.
Cable Material
- PVC -- general purpose, cost-effective
- Silicone -- flexible, high-temperature
- PTFE/Teflon -- chemical resistant, high-temp
- XLPE -- irradiation cross-linked, durable
- Custom per specification
Connector Options
- JST series connectors
- Molex series connectors
- TE / AMP connectors
- Customer-specified connector
- Bare wire / no connector
Terminal Options
- Crimp terminals
- Ring terminals (M3-M6)
- Pin terminals
- Housing terminals
- Customized terminals
Harness Layout
- Single branch
- Multi-branch structure
- Parallel sensor leads
- Grouped sensing points
- Custom wiring structure
Single-Point vs Multi-Point NTC Sensor Harness
Choose the right configuration for your sensing requirements.
Single-Point NTC Sensor Harness
Suitable for monitoring temperature at a single critical location. Commonly used for individual battery modules, busbar contact points, power module housings, motor components and equipment areas where one sensing location is sufficient for thermal management or protection.
- One NTC probe per harness
- Simple cable structure, easy installation
- Suited for localized hotspot or contact point monitoring
- All probe and connector types available
Multi-Point NTC Sensor Harness
Consolidates multiple NTC sensing elements into one cable assembly with branching wires, all terminating at a single connector. Reduces independent wiring, simplifies BMS integration and ensures consistent temperature data from multiple locations within battery packs, ESS modules, EV batteries and industrial systems.
- 2 to 12+ sensing points in one assembly
- Single connector interface to BMS or control system
- Branch lengths matched to battery module positions
- Reduces wiring complexity and assembly errors
| Parameter | Single-Point | Multi-Point |
|---|---|---|
| Sensing Locations | 1 point | 2 to 12+ points |
| Harness Structure | Single cable with one probe | Main cable with multiple branches |
| Connector Interface | Single connector | Single connector, multiple channels |
| Typical Application | Busbar, single module, motor, power unit | Battery pack, ESS, EV battery, inverter |
| Installation Complexity | Simple | Requires layout planning per equipment |
| BMS Integration | Direct channel connection | Single plug to BMS, multiple temp channels |
| Customization | Probe type, cable, connector, terminal | All single-point options + branch count and layout |
How to Customize Your NTC Temperature Sensor Harness
From requirements to mass production in a structured process.
Submit Application Requirements
Send your application description and temperature sensing requirements. Describe the equipment type, operating environment and where temperature needs to be monitored.
Confirm NTC Parameters
Confirm resistance value, B value and tolerance based on your BMS or control system calibration requirements.
Define Sensing Point Layout
Specify the number of sensing points and their positions within the equipment. Provide a layout drawing or describe the physical arrangement.
Select Probe, Cable & Connector
Choose probe type, cable material, connector type and terminal based on installation method, environment and BMS interface.
Confirm Cable & Branch Lengths
Define main cable length, individual branch lengths and harness layout according to your equipment dimensions and wiring path.
Provide Reference Materials
Provide drawing, sample, wiring diagram or connector part number if available. Any reference material helps reduce revision cycles.
Prototype & Sample Confirmation
We produce samples based on confirmed specifications. You review and confirm the sample before mass production begins.
Mass Production & Delivery
After sample approval, we proceed to mass production with batch inspection and shipment according to agreed delivery schedule.
Ready to start your customization?
Send your drawing, sample or application requirements. We will respond within 24 hours.
Quality and Testing
Inspection and verification at every stage of production.
Our production process includes systematic inspection procedures covering electrical performance, mechanical integrity and dimensional accuracy. Additional testing can be arranged according to project requirements.
Electrical & Thermal Testing

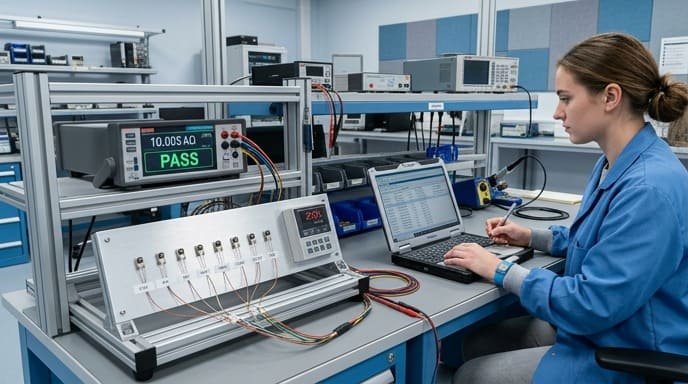

- Resistance value testing at reference temperature
- B value verification against specification
- Temperature response checking
- Continuity test for all conductors
- Insulation resistance test
Mechanical & Assembly Inspection
- Cable and connector visual inspection

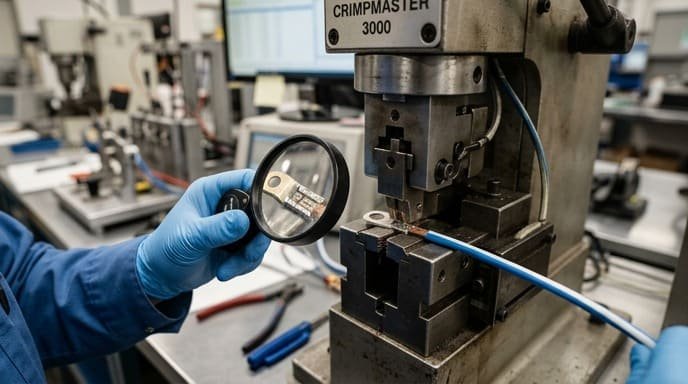

- Terminal crimping quality inspection
- Pull force test on terminals and connectors

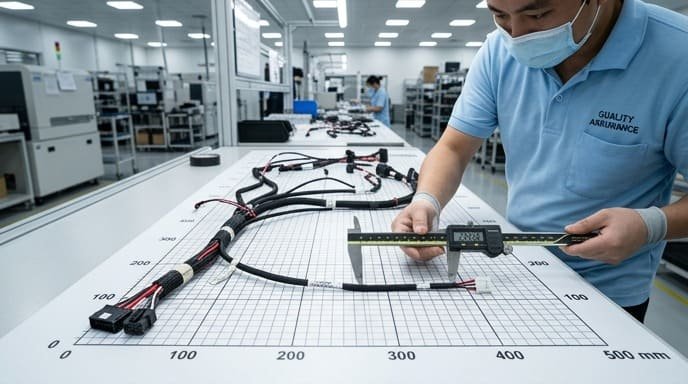

- Harness layout and dimension inspection
- Appearance and workmanship inspection
- Sample confirmation before mass production
- Batch inspection before shipment
Production System & Certifications
Frequently Asked Questions
Common questions about NTC sensor harness customization.
Can you customize NTC temperature sensor harnesses?
Yes. We manufacture NTC temperature sensor harnesses according to customer drawings, samples, wiring diagrams, connector part numbers or application descriptions. All key parameters are configurable.
Can you produce multi-point NTC temperature sensing harnesses?
Yes. We produce multi-point NTC sensor harnesses with 2, 3, 4, 6, 8, 12 or more sensing points in a single cable assembly. Branch count and layout are defined according to your equipment structure and BMS interface.
Can you customize the resistance value and B value?
Yes. Resistance value (10K, 50K, 100K or other values) and B value (B3435, B3950, B3977 or custom) can be specified according to your BMS calibration and system requirements.
Can you customize cable length, branch length and harness layout?
Yes. Main cable length, individual branch lengths and the overall harness layout are all customizable based on your equipment dimensions and wiring path requirements.
Can you match customer-specified connectors and terminals?
Yes. We can produce harnesses using JST, Molex, TE, AMP or any customer-specified connector. Terminal type (crimp, ring, pin, housing) is also configurable. Please provide the connector part number or a sample for reference.
Can NTC sensor harnesses be used for BMS, battery packs and energy storage systems?
Yes. Our NTC temperature sensor harnesses are widely used in BMS temperature signal collection, lithium battery pack monitoring, energy storage system modules and EV battery thermal management.
Can NTC sensor harnesses be used for busbars, inverters and industrial equipment?
Yes. We supply ring terminal and flat probe NTC harnesses for busbar surface monitoring, and single or multi-point harnesses for inverter thermal management and industrial equipment over-temperature protection.
What information do I need to provide for a quotation?
To provide an accurate quotation, it helps to know: application type, number of sensing points, NTC resistance and B value, probe type, cable material and length, branch lengths, connector and terminal type, mounting method and estimated annual quantity. A drawing or wiring diagram is helpful but not required to start.
Can you produce harnesses based on drawings, samples or wiring diagrams?
Yes. We accept production based on customer drawings, physical samples, wiring diagrams, connector part numbers or written specifications. Any reference material helps reduce development time.
Can you provide samples for testing before mass production?
Yes. We produce prototypes or pre-production samples for customer evaluation and confirmation before mass production begins. Sample testing is part of our standard development process.
How do I choose between a single-point and multi-point NTC sensor harness?
If you need to monitor temperature at one specific location, a single-point harness is suitable. If your application requires monitoring multiple locations -- such as across battery modules, ESS cells or equipment zones -- a multi-point harness consolidates all sensing into one assembly with a single connector interface to your BMS or control system.
Request a Sensor Harness Quote
Tell us your requirements.
Complete the form below with your NTC temperature sensor harness requirements. We will review your specifications and respond within 24 hours.
